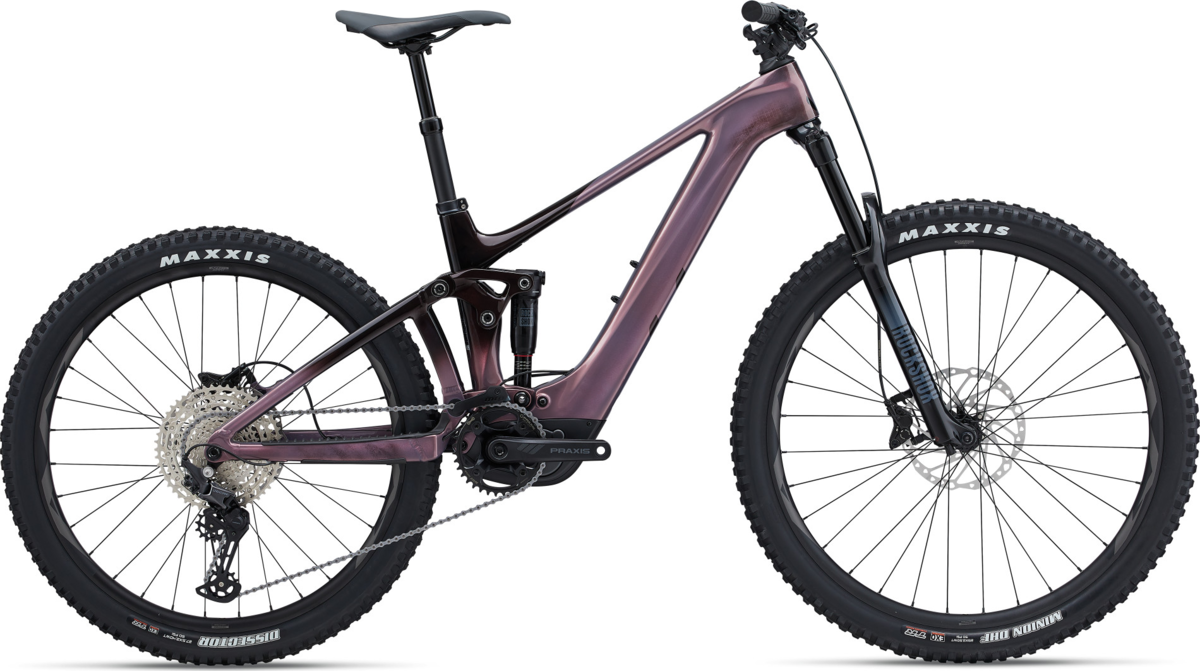

Liv Intrigue X Advanced E+ Elite 3

Liv Intrigue X Advanced E+ Elite 3
  • Color: Color A/Mirage
$5,999.99
$7,699.99
Color: Color A/Mirage
Size: Select size
Please select options Unavailable
Call for Availability - Pricing Subject to Change - In Store Only

Details

NEXT-LEVEL PERFORMANCE AND UNFORGETTABLE FUN AWAIT YOU ON THIS PREMIUM E-MTB. THE CUTTING-EDGE INTRIGUE X ADVANCED E+ ELITE IS REMARKABLY LIGHT BUT SUPER POWERFUL. GET READY TO FEEL LIKE A PRO AS YOU SHRED TECHNICAL TERRAIN WITH CONFIDENCE, ACCELERATE UP CLIMBS, AND CORNER AT TOP SPEED.

KEY PERFORMANCE FACTORS

Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.

Powerful and smooth
A powerful 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.

Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

RANGE
How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good, and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

ENERGYPAK 400 / SYNCDRIVE PRO

Range:
- Extreme: 21 miles
- Good: 43 miles
- Ideal: 80 miles

TECHS & FEATURES:

ADVANCED COMPOSITE TECHNOLOGY
Liv’s High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv’s Advanced-Grade Composite frames are designed to offer light weight and stiffness with optimal compliance.

HYBRID CYCLING TECHNOLOGY
Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful and natural E-bike riding experience. It’s a seamless extension of a rider’s own power that sets Liv and Giant E-bikes apart from other "electric" bicycles. The system consists of four key innovative technologies that work in unison with your own body’s power output—a seamless extension of your own capabilities.

ENERGYPAK
EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.

SYNCDRIVE PRO
The powerful SyncDrive Pro 2 Motor was co-developed with Yamaha and is their lightest ever E-bike motor. It provides 85Nm of torque, the most in the Amiti E+ range, and will help you confidently conquer the steepest of hills. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With this powerful yet quiet motor underneath you, you’ll feel naturally strong in any riding situation and at any speed.

SMART ASSIST
With Smart Assist you can enjoy seamless acceleration and power boost. The Smart Assist Technology system replicates a natural riding style, using the six sensors to add assistance exactly when needed.

RIDECONTROL GO
Available on premium Liv E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

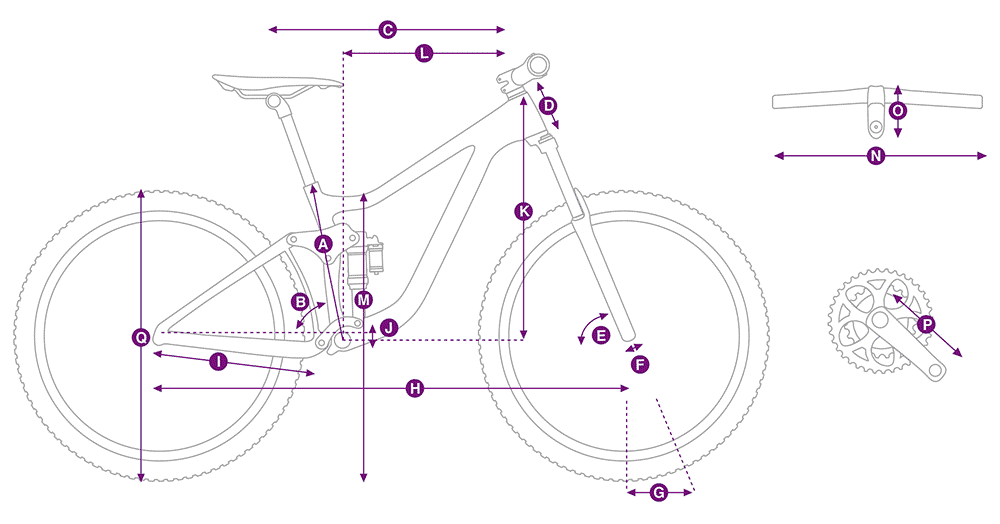

Geometry

Sizes:
X-SmallSmallMediumLarge
LOW | HIGH LOW | HIGH LOW | HIGH LOW | HIGH
A SEAT TUBE LENGTH (mm) 380 400 425 450
B SEAT TUBE ANGLE 77.2° | 78.0° 77.2° | 78.0° 76.0° | 76.7° 76.0° | 76.7°
C TOP TUBE LENGTH (mm) 557 | 555 572 | 570 597 | 595 622 | 620
D HEAD TUBE LENGTH (mm) 95 95 100 115
E HEAD TUBE ANGLE 65.7° | 66.5° 65.7° | 66.5° 65.8° | 66.5° 65.8° | 66.5°
F FORK RAKE (mm) 44 44 44 44
G TRAIL (mm) 113 | 108 113 | 108 113 | 108 113 | 108
H WHEELBASE (mm) 1174 | 1175 1188 | 1190 1200 | 1201 1228 | 1229
I CHAIN STAY LENGTH (mm) 447 | 447 447 | 447 447 | 447 447 | 447
J BOTTOM BRACKET DROP (mm) 30 | 20 30 | 20 30 | 20 30 | 20
K STACK (mm) 606 | 601 606 | 601 611 | 605 625 | 619
L REACH (mm) 419 | 427 434 | 442 444 | 452 466 | 473
M STAND OVER HEIGHT (mm) 722 | 730 726 | 735 717 | 726 711 | 723
N HANDLEBAR WIDTH (mm) 760 760 800 800
O STEM LENGTH (mm) 40 40 40 50
P CRANK LENGTH (mm) 160 160 165 165
Q WHEEL SIZE R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29"
Sizes:
X-Small5'0" 5’4"
Small 5'2" 5’7"
Medium 5'5" 5’9"
Large 5'7" 5’11"

Specs

Frame Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, Advanced Forged Composite upper rocker, 140mm Maestro suspension, 12x148 thru-axle, flip chip - Maestro
Fork RockShox 35 Gold RL DebonAir, 150mm travel, 44mm offset, MotionControltm rebound and lockout control, 15x110 Boost, Maxle Stealth, e-MTB optimized
Rear Shock Rock Shox Deluxe Select R, DebonAir, 185x52.5mm Trunnion mount, custom tuned
Rims Giant AM 29" [F]/ 27.5" [R], Tubeless ready, 30mm inner width, e-bike optimized
Hubs Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
Spokes Sapim E-Lite [R] Race [F], e-bike optimized
Tires Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
Crankset Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (XS:160, S/M: 165, L:170)
Shifters Shimano Deore
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur Shimano Deore, 12-speed
Cassette/Freewheel Shimano CS-M6100-12, 10-51T, 12-speed
Chain KMC e.12 Turbo, EcoProteq, e-bike optimized
Brakes Shimano BR-M420, 4-piston, hydraulic disc, 203mm
Brake Levers Shimano Deore, I-spec EV
Handlebars Giant Contact 35 Trail, 35x 760mm (XS-S), 780mm (M-L)
Tape/Grips Liv Tactal Pro-E Single Lock-On Grips
Stem Giant Contact SL 35
Seatpost Giant Contact Switch, dropper, 30,9mm (XS-S: 100/ M:125/ L:150) (*3mm housing recommended)
Saddle Liv Sylvia E+
Pedals Sold separately
Accessories & Extras Tubeless kit (liquid, valves, levers, manual, tool)
Motor SyncDrive Pro2 85Nm, powered by Yamaha
Battery EnergyPak Smart 400Wh EnergyPak Plus 200Wh range extender compatible
Controller/Display RideControl Ergo 3, grip integrated / RideControl GO, frame integrated LED display ANT+ Wireless display compatible

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Color A/Mirage / X-Small 04712878866942 2303356103 210000064264
Color A/Mirage / Small 04712878866959 2303356104 210000064265
Color A/Mirage / Medium 04712878866966 2303356105 210000064266
Color A/Mirage / Large 04712878866973 2303356107 210000064267
