Details

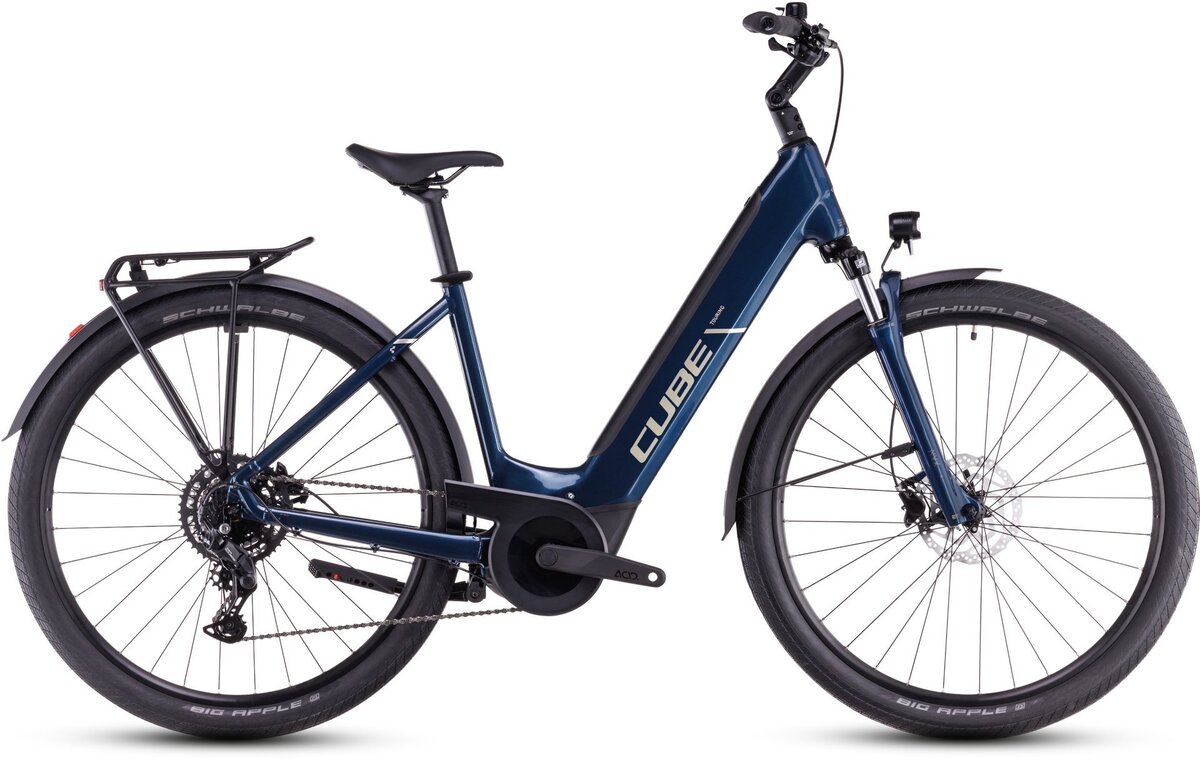

Classically understated and so simple to live with you'll wonder how you managed without it, the Touring Hybrid's Easy Entry frame is a masterpiece of form follows function. Key to it all, of course, is the Bosch Performance motor and 500Wh PowerTube battery, both so neatly integrated into the frame that they're barely noticeable. Our Efficient Comfort Geometry does exactly what it says, making every ride a pleasure. There's even a 63mm suspension fork for extra comfort on rough roads. And we've not forgotten the all-important practical touches, either. With its semi-integrated carrier, full-length mudguards, lighting system and kickstand, it has everything you need for life's adventures.
Frame Size | 46 cm | 50 cm | 54 cm | 58 cm |
---|---|---|---|---|
Seat tube (cm) | 440 | 480 | 520 | 560 |
Top Tube Horizontal (cm) | 590 | 600 | 610 | 620 |
Seat angle | 73° | 73° | 73° | 73° |
Head tube angle | 68.2° | 68.7° | 69.2° | 69.5° |
Chainstays (cm) | 509 | 509 | 509 | 509 |
Head tube (cm) | 160 | 160 | 160 | 160 |
Wheelbase (cm) | 1171 | 1176 | 1181 | 1185 |
BB-Height to Hub (cm) | 75 | 75 | 75 | 75 |
Reach (cm) | 386 | 396 | 406 | 415 |
Stack (cm) | 655 | 657 | 659 | 662 |
Specs
Frame | Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Semi Integrated Carrier |
---|---|
Fork | SR Suntour NVX30 Coil, 63mm |
Rims | CUBE EX25, 32H, Disc, Tubeless Ready |
Hubs |
Front: Shimano HB-QC300, QR, Centerlock Rear: Shimano FH-QC300-HM, QR, Centerlock |
Tires | Schwalbe Big Apple, Active, 55-622 |
Crankset | ACID Trekking Hybrid, 40T |
Shifters | Shimano Cues SL-U4010, Rapidfire-Plus |
Rear Derailleur | Shimano Cues RD-U4000-GS, 9-Speed |
Cassette/Freewheel | Shimano Cues CS-LG300, 11-46T |
Chain | KMC eGlide |
Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Handlebars | CUBE Comfort Trail Bar, 700mm |
Tape/Grips | ACID Travel Comfort |
Stem | CUBE Comfort Stem Pro, 31.8mm, Adjustable |
Headset | ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Seatpost | CUBE Performance Post, 30.9mm |
Saddle | ACID Sequence Pro Plus |
Pedals | ACID PP MTB |
Accessories & Extras |
ACID Front Light PRO-E 60, 12V, DC front light ACID Mudguard Rear Light PRO-E, 12V, DC ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible |
Motor | Bosch Drive Unit Performance Generation 3 Smart System |
Battery | Bosch PowerTube, 500Wh |
Controller/Display | Bosch Purion 200 w/ Integrated Display |
Charger | Bosch 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Deep Sea´n´Chrome / 46cm / 26-Inch | 04054571486264 | 895124Easy Entry 46 cm | 210000072769 |
Deep Sea´n´Chrome / 50cm / 26-Inch | 04054571486271 | 895124Easy Entry 50 cm | 210000072771 |
Deep Sea´n´Chrome / 54cm / 26-Inch | 04054571486288 | 895124Easy Entry 54 cm | 210000072773 |
Deep Sea´n´Chrome / 58cm / 26-Inch | 04054571486295 | 895124Easy Entry 58 cm | 210000072775 |
