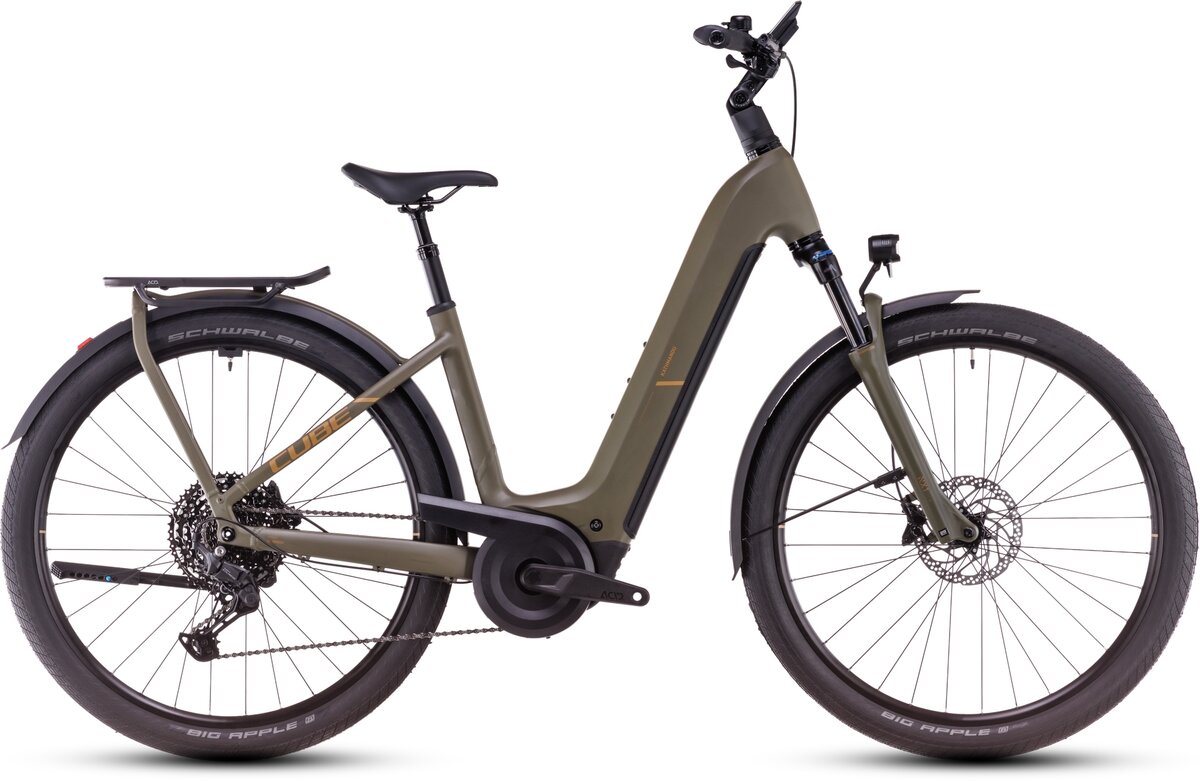

CUBE Bikes Kathmandu Hybrid Pro 800 Easy Entry

CUBE Bikes Kathmandu Hybrid Pro 800 Easy Entry
$5,499.99
Color: Dusty Olive´n´Gold
Size: Select size
Wheel Size: 29-Inch
Please select options Unavailable

Details

The Kathmandu Hybrid's Easy Entry frame is designed to do exactly what it says, making adventurous cycling as accessible and straightforward as possible. The neatly housed Bosch CX drive and 800 Wh PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile, and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy, and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Sizes:
Frame Size 46 cm50 cm54 cm58 cm62 cm
Seat tube (cm) 420 460 510 560 600
Top Tube Horizontal (cm) 580 590 600 620 640
Seat angle 73.5° 73.5° 73° 73° 73°
Head tube angle 67.5° 67.5° 68.5° 68.5° 68.5°
Chainstays (cm) 499 499 499 499 499
Head tube (cm) 150 150 150 160 175
Wheelbase (cm) 1169 1179 1171 1192 1213
BB-Height to Hub (cm) 75 75 75 75 75
Reach (cm) 378 388 390 408 424
Stack (cm) 680 680 685 694 708

Specs

Frame Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube
Fork SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm
Rims CUBE EX25, 32H, Disc, Tubeless Ready
Hubs CUBE Engineered By Newmen, 15mm, Boost, Centerlock/CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Crankset ACID MTB Hybrid Pro
Shifters Shimano Cues SL-U6000, Rapidfire-Plus
Rear Derailleur Shimano Cues RD-U6000-GS, 11-Speed
Cassette/Freewheel Shimano Cues CS-LG400, 11-50T
Chain KMC eGlide
Brakes Shimano BR-MT420, Hydr. Disc Brake (180/180)
Handlebars CUBE Comfort Trail Bar, 700mm
Tape/Grips ACID Travel Comfort
Stem CUBE Comfort Stem Pro, 31.8mm, Adjustable
Headset ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Seatpost CUBE Suspension Seatpost HD, 31.6mm
Saddle ACID Sequence Pro Plus
Pedals ACID PP MTB
Motor Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Battery Bosch PowerTube 800
Controller/Display Bosch LED Remote
Charger Bosch 2A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Dusty Olive´n´Gold / 46cm / 29-Inch 04054571486516 895130Easy Entry 46 cm 210000072809
Dusty Olive´n´Gold / 50cm / 29-Inch 04054571486523 895130Easy Entry 50 cm 210000072807
Dusty Olive´n´Gold / 54cm / 29-Inch 04054571486530 895130Easy Entry 54 cm 210000072805
Dusty Olive´n´Gold / 58cm / 29-Inch 04054571486547 895130Easy Entry 58 cm 210000072803
