Details

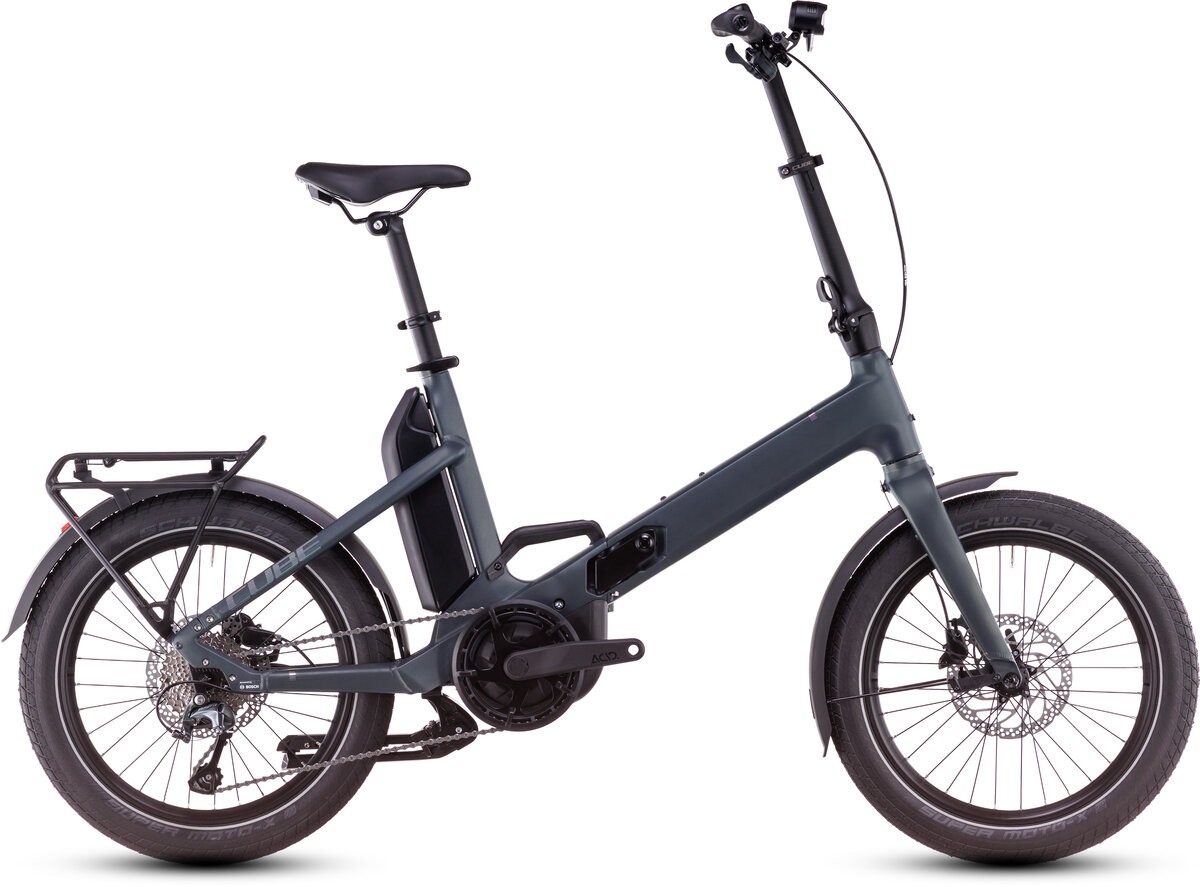

Built to slot into your life as easily as it folds for storage or transport, the Fold Hybrid is the two-wheeled companion you'll wish you'd always had. With the power of Bosch's Active Plus motor, the wide range of Shimano's easy-to-use Tiagra 10-speed gears and a 500Wh battery as standard, it makes light work of any trip and delivers you to your destination fresh and in good shape to continue with the rest of your day. The included rear carrier – and optional front carrier – make it easy to take everything you need with you. And, with mudguards, a sturdy kickstand and a rugged carrying handle, it has everything you need.
The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!
Frame Size | 20": ONE SIZE |
---|---|
Seat tube (cm) | 448 |
Top Tube Horizontal (cm) | 620 |
Seat angle | 74° |
Head tube angle | 71° |
Chainstays (cm) | 443 |
Head tube (cm) | 155 |
Wheelbase (cm) | 1138 |
BB-Height to Hub (cm) | 20 |
Protrusion height - 80mm (cm) | 445 |
Reach (cm) | 494 |
Stack (cm) | 441 |
Specs
Frame | Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar |
---|---|
Fork | Aluminium Rigid Fork, 20" |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Hubs | Shimano HB-QC300, QR, Centerlock/Shimano FH-QC300-HM, QR, Centerlock |
Crankset | ACID Trekking Hybrid, 42T with Chainguard |
Shifters | Shimano Tiagra SL-4700 |
Rear Derailleur | Shimano Tiagra RD-4700GS, 10-Speed |
Cassette/Freewheel | Shimano CS-HG500, 11-34T |
Chain | KMC X10 |
Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/180) |
Handlebars | CUBE Comfort Trail Bar, 680mm, 25.4mm |
Tape/Grips | ACID Travel Comfort |
Stem | Cube Folding Stem, Adjustable Length, 25,4mm Clamp |
Headset | ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
Seatpost | Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost |
Saddle | Natural Fit Sequence |
Pedals | Folding Pedal, Aluminium |
Motor | Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt) |
Battery | Bosch PowerPack 500 |
Charger | Bosch 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Sagebrush Green´n´Prism / One Size / 20-Inch | 04054571486936 | 89514020 |
