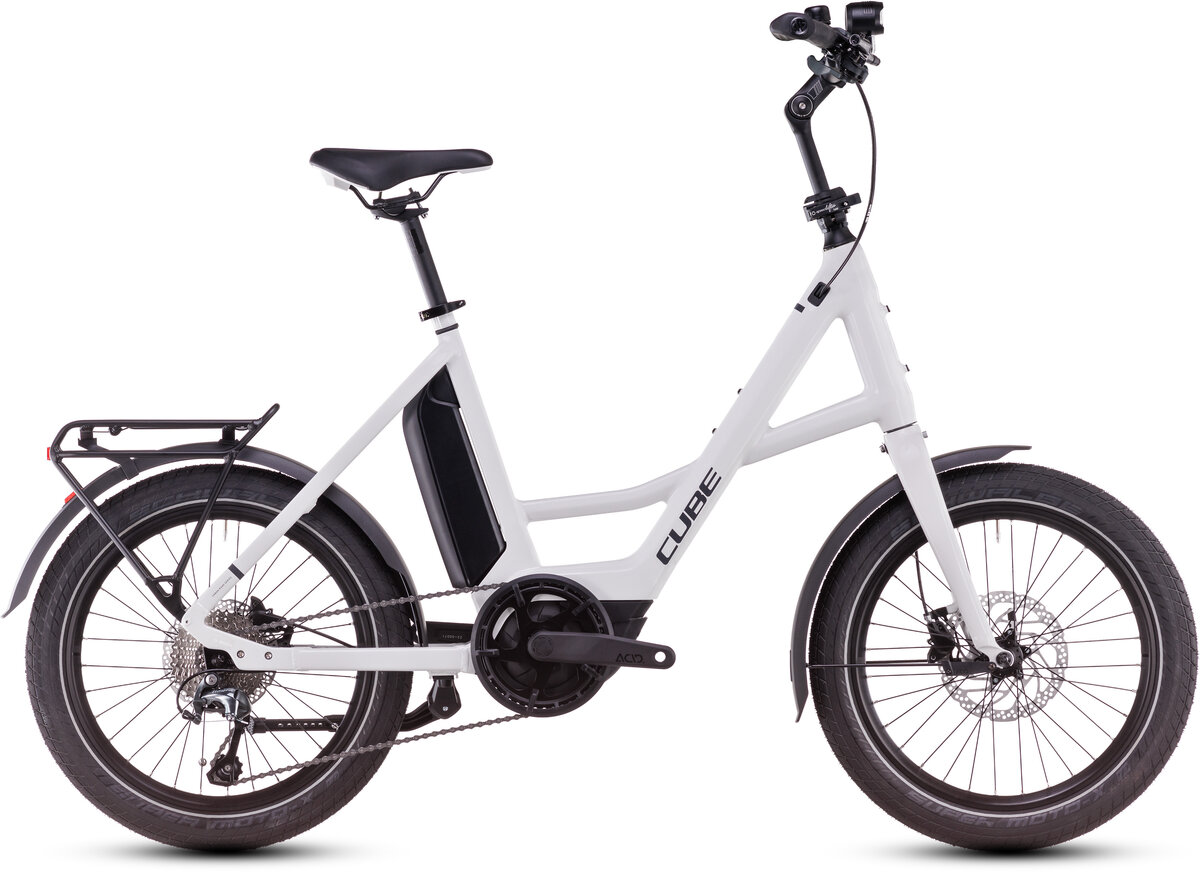

Getting from A to B doesn't need to involve sitting in a tin box – and here's the proof. The Compact Hybrid's rugged, easy step-through design fits riders of all sizes and is easy to store and transport. Bosch's powerful Performance drive unit takes the sweat out of everyday riding, while Shimano's wide-ranging and reliable 10-speed Tiagra gears make light work of any route. Powerful hydraulic disc brakes ensure you can stop safely in all weathers. And the lighting system, mudguards, luggage carrier, and kickstand ensure that the Compact Hybrid will slot easily into your life. For work, for play, for any reason.
The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbors, and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!
Frame Size | ONE SIZE |
---|---|
Seat tube (cm) | 480 |
Top Tube Horizontal (cm) | 580 |
Seat angle | 72° |
Head tube angle | 72° |
Chainstays (cm) | 445 |
Head tube (cm) | 260 |
Wheelbase (cm) | 1080 |
BB-Height to Hub (cm) | 21 |
Protrusion height - 80mm (cm) | 500 |
Reach (cm) | 408 |
Stack (cm) | 544 |
Specs
Frame | Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout |
---|---|
Fork | Aluminium Rigid Fork, 20" |
Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
Hubs | Shimano HB-QC300, QR, Centerlock/Shimano FH-QC300-HM, QR, Centerlock |
Crankset | ACID Trekking Hybrid, 40T |
Shifters | Shimano Tiagra SL-4700 |
Rear Derailleur | Shimano Tiagra RD-4700GS, 10-Speed |
Cassette/Freewheel | Shimano CS-HG500, 11-34T |
Chain | KMC X10 |
Brakes | Shimano BR-MT200, Hydr. Disc Brake (180/160) |
Handlebars | CUBE Comfort Trail Bar, 680mm |
Tape/Grips | ACID Travel Comfort |
Stem | BySchulz Speedlifter Twist Pro SDS T15 |
Headset | Cube H835D3, Semi-Integrated, Sealed bearing |
Seatpost | Newmen Evolution, 27.2mm |
Saddle | Natural Fit Sequence |
Pedals | ACID PP MTB |
Motor | Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt) |
Battery | Bosch PowerPack 500 |
Controller/Display | Bosch Purion |
Charger | Bosch 2A |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Cotton´n´Reflex / One Size / 20-Inch | 04054571486929 | 89513920 |
